SPECIFICATIONS

Material: Iron, Pure Copper

💛Our 12V gear reduction electric motor can help you achieve high-efficiency deceleration for your e-bike. It comes with a sturdy iron casing and a 250W high-efficiency copper wire motor with the advantages of fast heat dissipation, long service life, and sturdiness. It adopts gear transmission to reduce the speed of the high-speed motor to realize the smooth starting and low-speed riding of the e-bike, which can bring users a more convenient and comfortable riding experience.

💛Key Features
High-quality Material: The product is made of iron, with high hardness, high-temperature resistance, and corrosion resistance, ensuring a long service life.

Excellent Performance: The 250W pure copper brushed motor has a 2750rpm speed and high torque to effectively decelerate and withstand high loads.

Thoughtful Design: The gear DC motor can be changed to rotate clockwise or counterclockwise by reversing the motor's power cord to increase flexibility and extend the life of the motor.

Large Load Capacity: Compared to high-speed motors, this gear motor produces greater low-end torque and can support a heavy load of up to 220 lbs, providing a more powerful operation.

Smooth Operation: The pure copper brushed motor with low noise and a sturdy base makes the product operate more smoothly and quietly.

Easy to Operate & Move: The compact(3.74*2.95*5.04inch), lightweight design makes it easy to operate and move everywhere.

Assembly in a Breeze: A simple structure and pre-drilled holes allow you to complete the installation in a short time.


💛Details
Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and better care for your skin when installing and cleaning it.

Long Power Cable: The long power cable adds convenience and extraordinary mobility when using and installing this motor.

💛Application

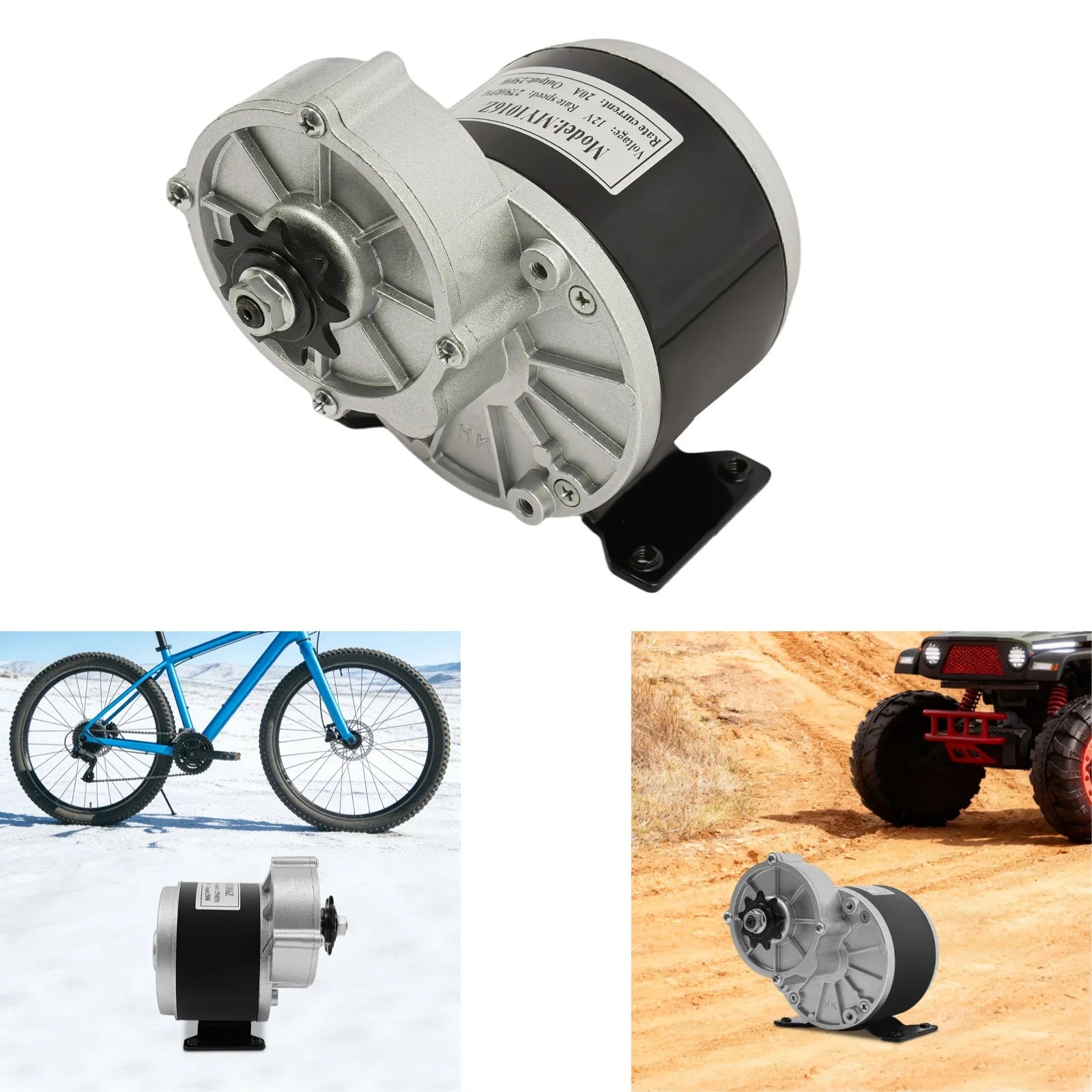

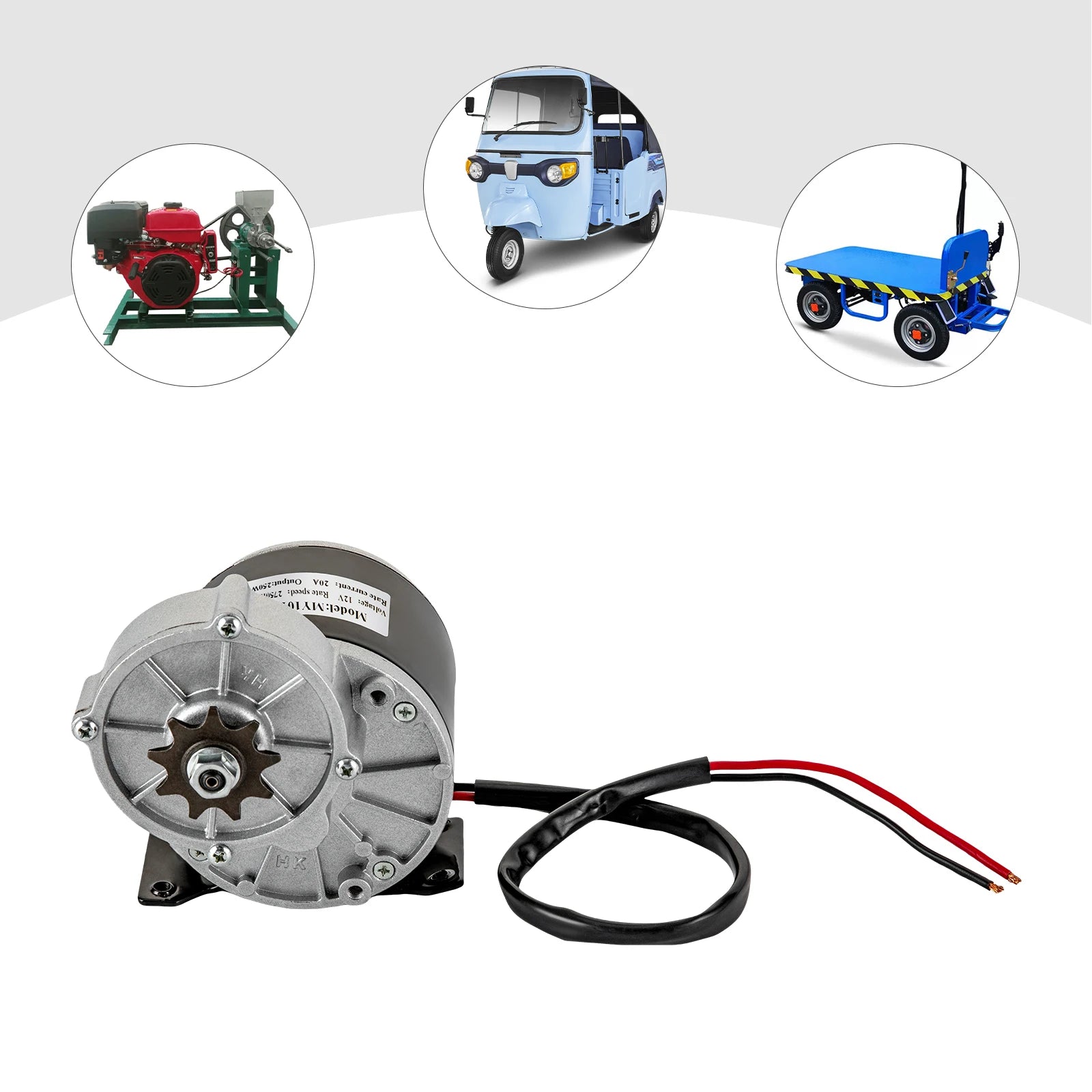

It's suitable for motorized bicycles, mopeds, bikes, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, electric vehicle modifications, and several small mechanical equipment.

💛Specifications
Material: Iron, Pure Copper
Color: Black, Silver
Style: Modern
Shape: Round
Assembly Required: No
Voltage: 12V
Rate Speed: 2750RPM
Rate Current: 20A
Output: 250W
Reduction Ratio: About 9:1
Motor Load Capacity: About 100kg/220lbs
Gross Weight: 2.8kg/6.2lbs
Gear Diameter: 95mm/3.74inch
Mounting Foot Hole Spacing: 41mm/1.61inch

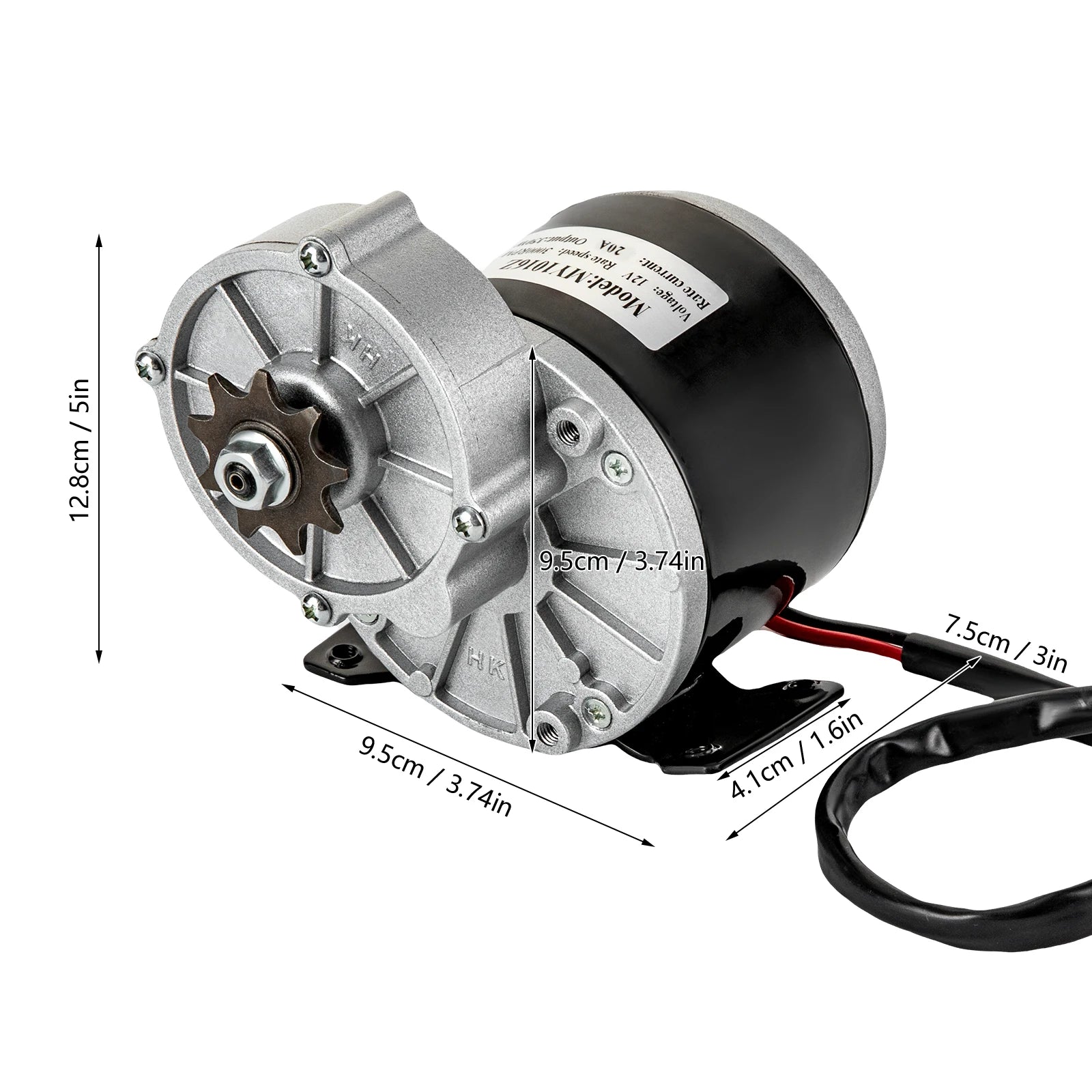

Product Size: 95*75*128mm/3.74*2.95*5.04inch
Package Size: 15*15*18cm/5.9*5.9*7.09in

💛Package Included
1* Gear Reduction Electric Motor

💛Notes
1.Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2.Please note that this product does not contain a cooling fan, please do not use in a small confined space.
