SPECIFICATIONS

Design height: 135MM



Feature 1: Unique lock core: The three lock pins use the same lock core, so one key can unlock all three locks.

Feature 2: Three ball mounts: Can meet more usage requirements.

Item Height: 40

Item Length: 62

Item Weight: 28100

Item Width: 45

Model Name: 3-ball head x 1

Note 1: Never exceed the towing rating of your vehicle!

Note 2: Adjustable Trailer Hitch

Note 3: ,Tow Hitch with Three Pins, Ball Mount,Automotive Trailer Hitch,Adjustable Ball Mount Hitch

Note 4: Adjustable Trailer Tow Hitch

Note 5: Fits 2-Inch Receiver, 6-Inch Drop/Rise Drop Hitch 2" Receiver

Note 6: 6" Drop

Special Features: Pin&Clip x 1 Lock Pin x 3

The Air Suspension Bag:
Design height: 135mm
Stroke: 110mm
Maximum height: 180mm
Minimum height: 70mm
Recommended pressure range: 0.80-1.50Mpa
Maximum burst pressure: ≥2.0Mpa.



The Trailer Hitch:

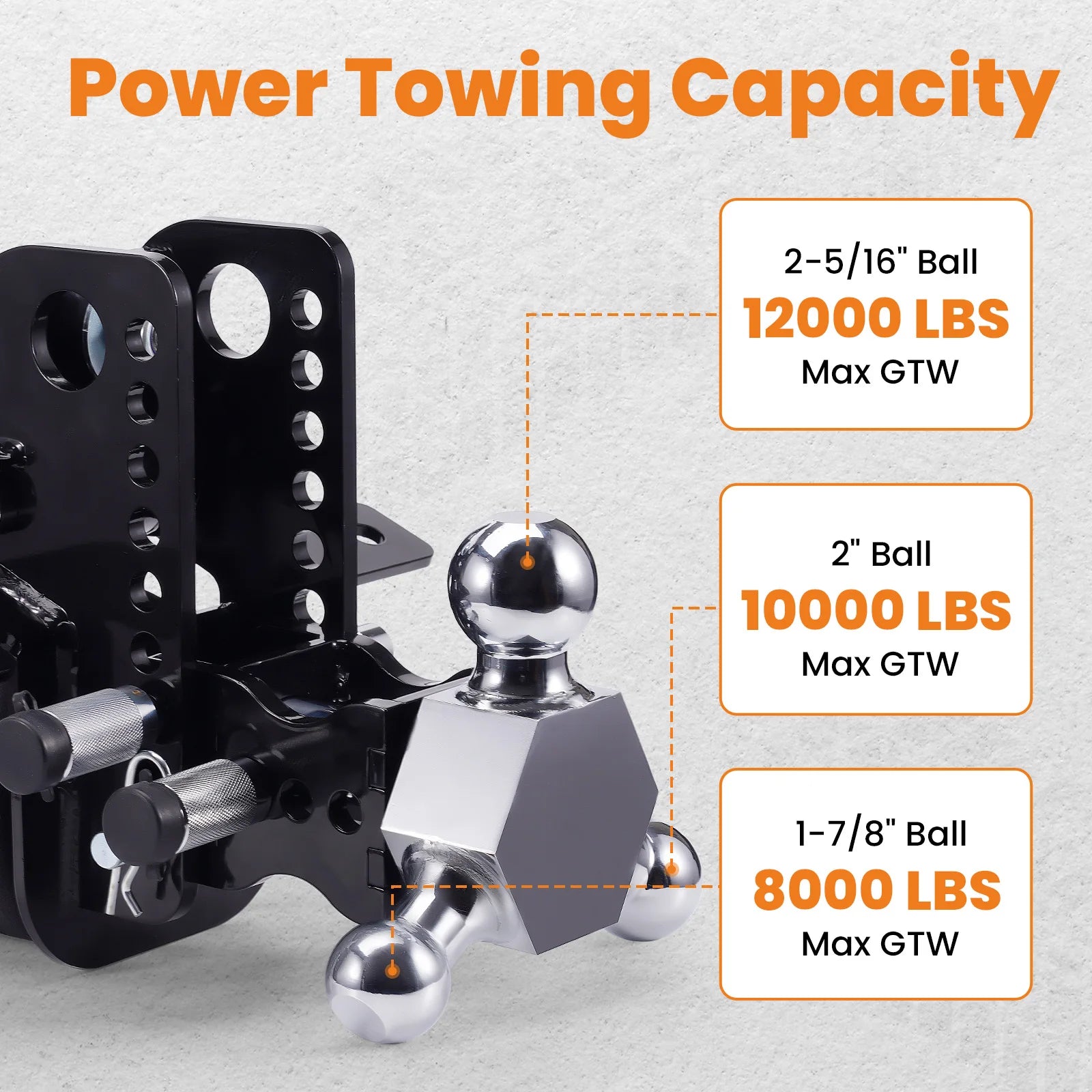

GTW capacity (1-7/8" ball): 8000lbs
GTW capacity (2" ball): 10000lbs
GTW capacity (2-5/16" ball): 12000lbs
Maximum Rise: 6"
Maximum Drop: 6"

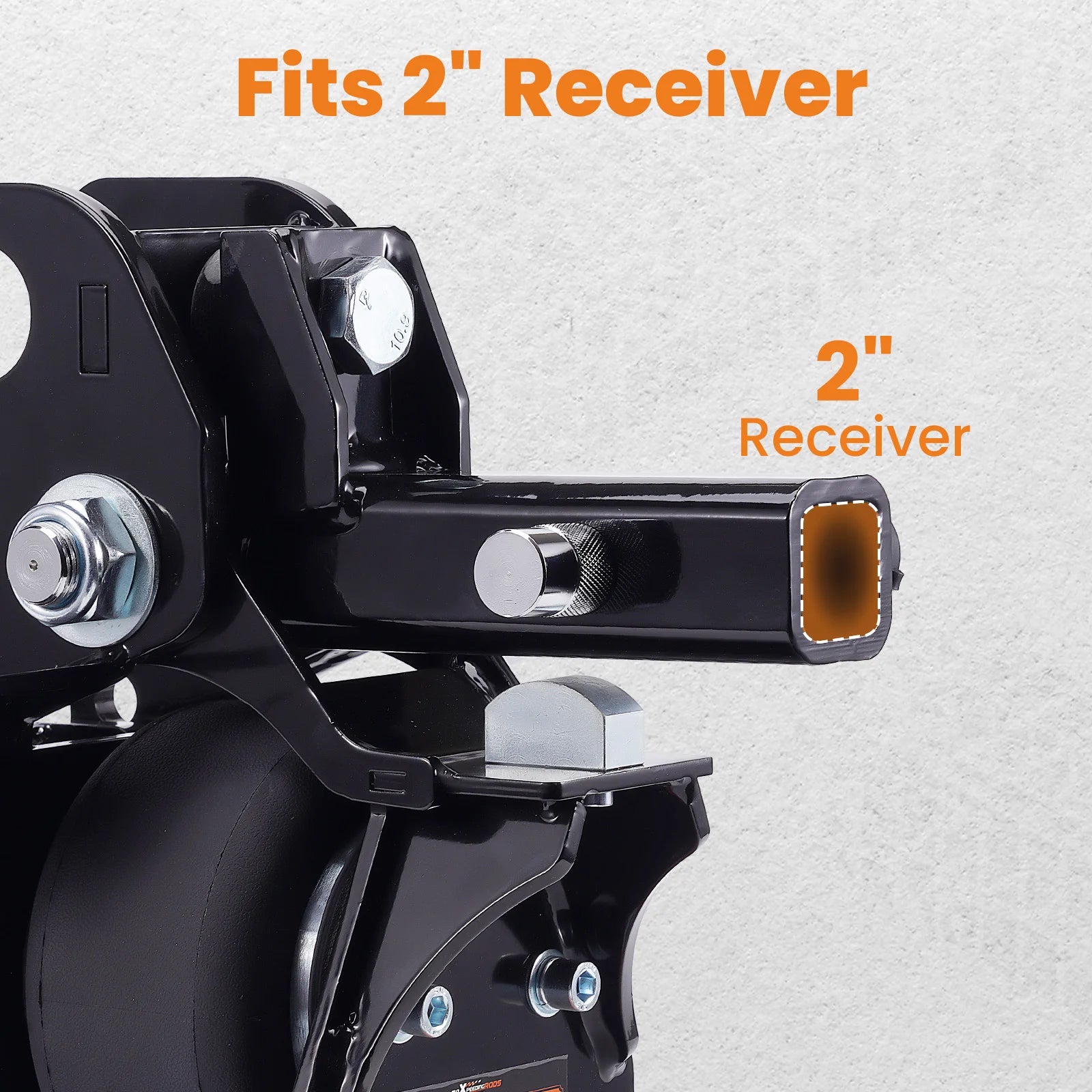

Receiver: 2"



Feature:
- Special Design with Air Suspension Bag: The air suspension bag reduces friction, absorbs shocks from the ground, and provides a smoother and more comfortable driving experience.
- Complete Anti-theft Design: Equipped with three lock pins to ensure the integrity of each part.
- Unique Lock Core: The three lock pins use the same lock core, so one key can unlock all three locks.

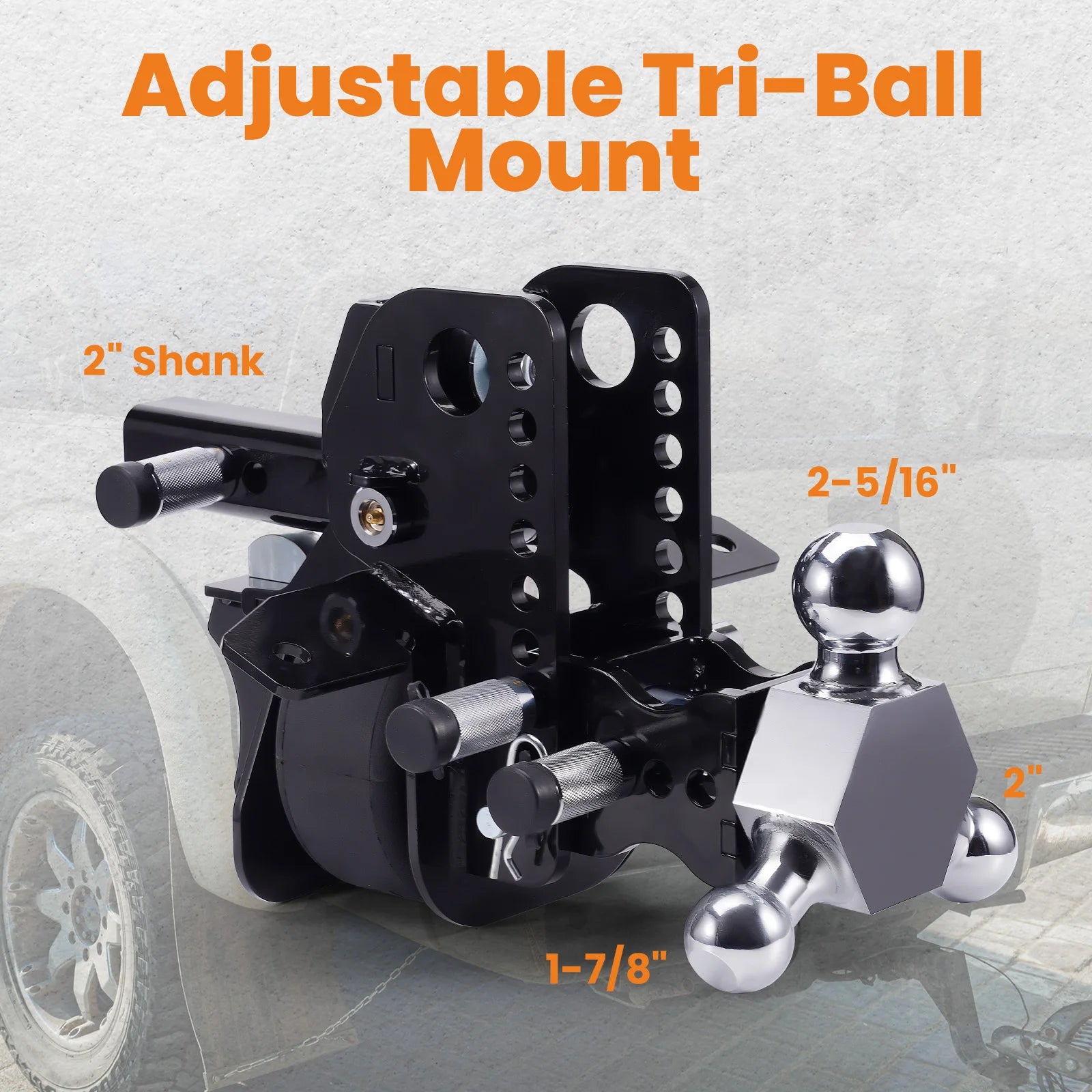

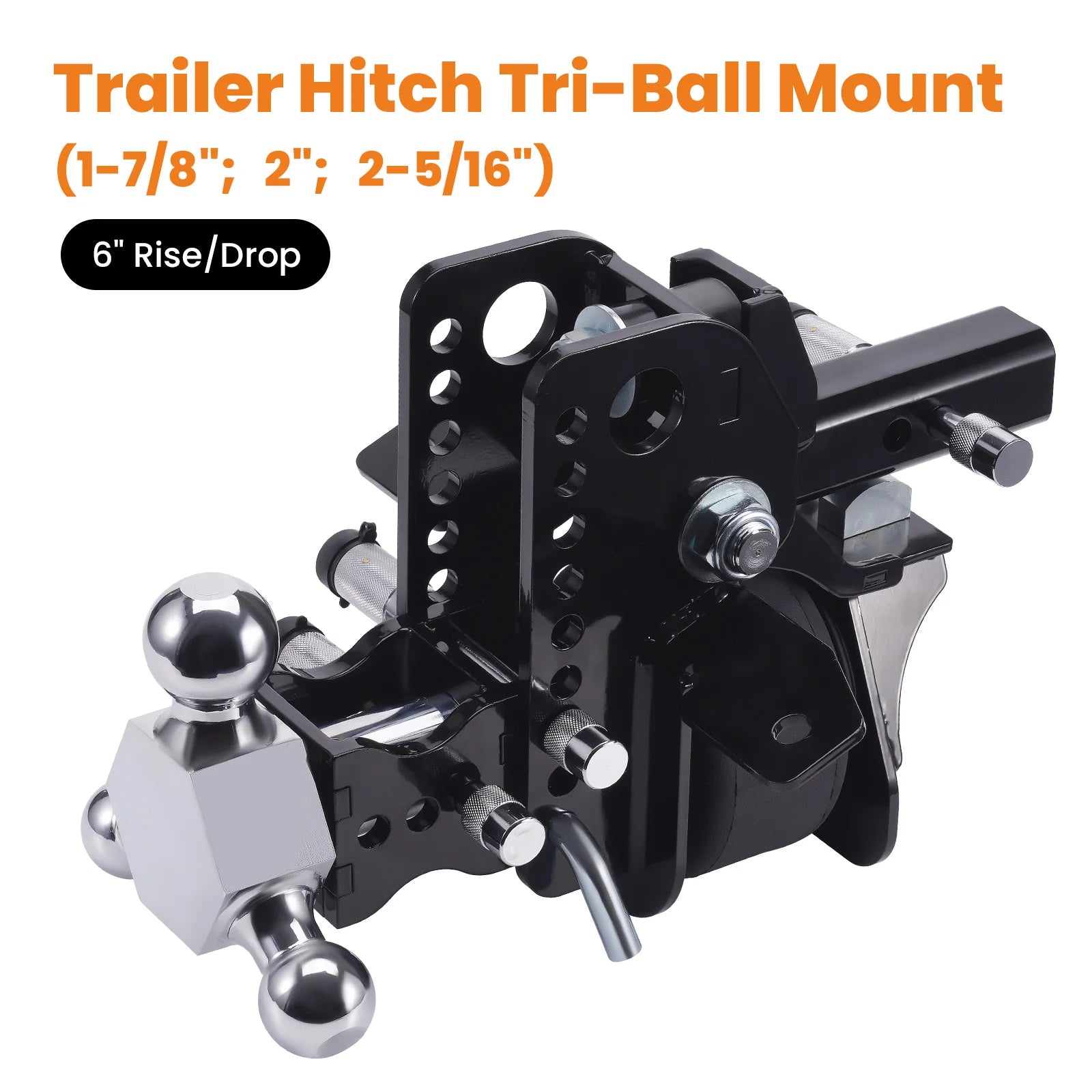

- Three Ball Mounts: Can meet more usage requirements.

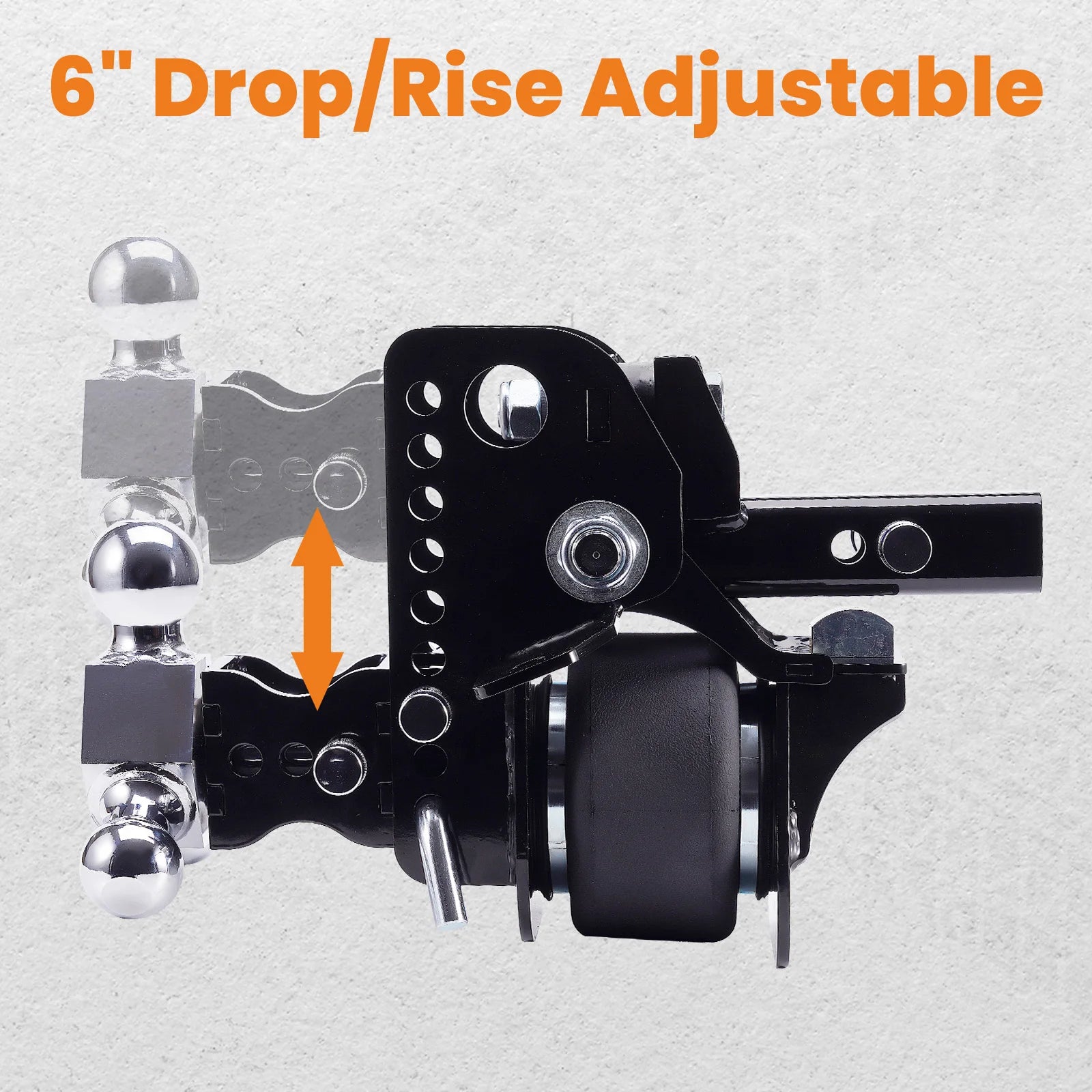

- Adjustment Holes: 8 Adjustment Holes for Maximum 6" rise and 6" drop. (Varies by ball mount used)



Note:
- If your total towing weight exceeds 12000lbs, it is highly recommended to choose a gooseneck trailer hitch.
- Never exceed the GTW capacity recommended in the instruction manual when using.
- Plesae pay attention to the rating of each component of the entire trailer system and should not exceed the minimum limit during operation.
- To avoid the entangled problem, the trailer safety chains are not permitted to be hooked up to the mounting system. Make sure the safety chains operate freely around the mounting system.
